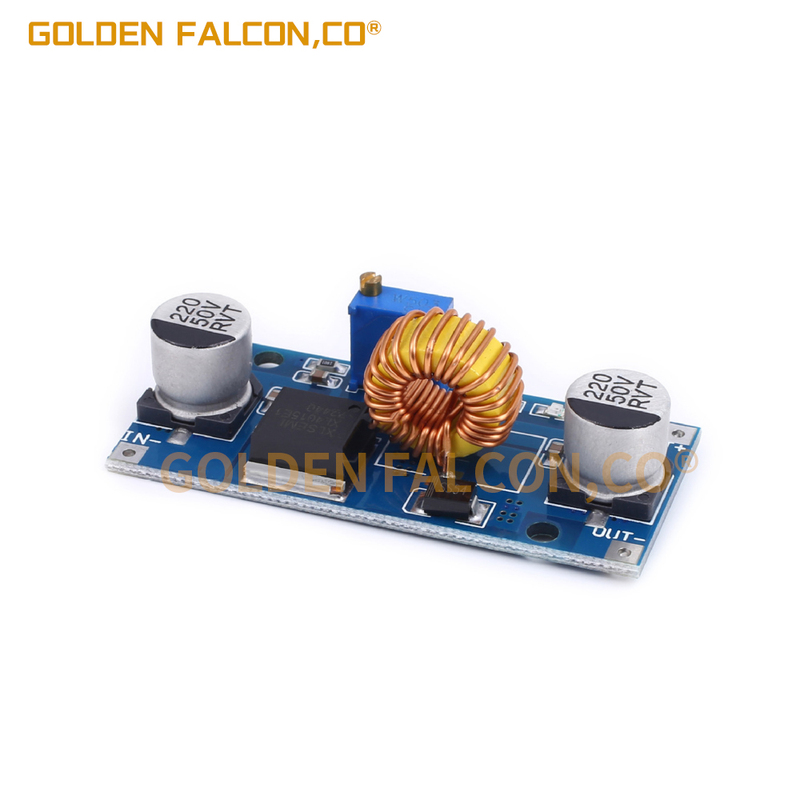

Module nature: non isolated step-down module (Buck)
Input voltage: 4-38v (input request shall not exceed 38V as far as possible)
Output voltage: 1.25-36v continuously adjustable
Output current: 0-5A
Output power: 75W
Working temperature: one ground ~ + 85 degrees
Operating frequency: 180khz
Conversion efficiency: 96% maximum
Load adjustment rate: s (I) ＜ 0.8% (input 24V, output 12V, load measured when load changes from 1 to 4.5a)
Voltage adjustment rate: s (U) ＜ 0.8% (measured when output 12V and 4A change from 18 to 32V)
Power indicator: Yes
Short circuit protection: Yes (limiting current 8a)
Over temperature protection: Yes (automatic shutdown output after over temperature).
Input reverse connection protection: No, (if necessary, please input a large current diode in series)
Installation mode: two 3mm screws
Connection wire mode: welding, v-in as input, v-out as output
Module size: length, width and height 15mm 54mm 23mm
