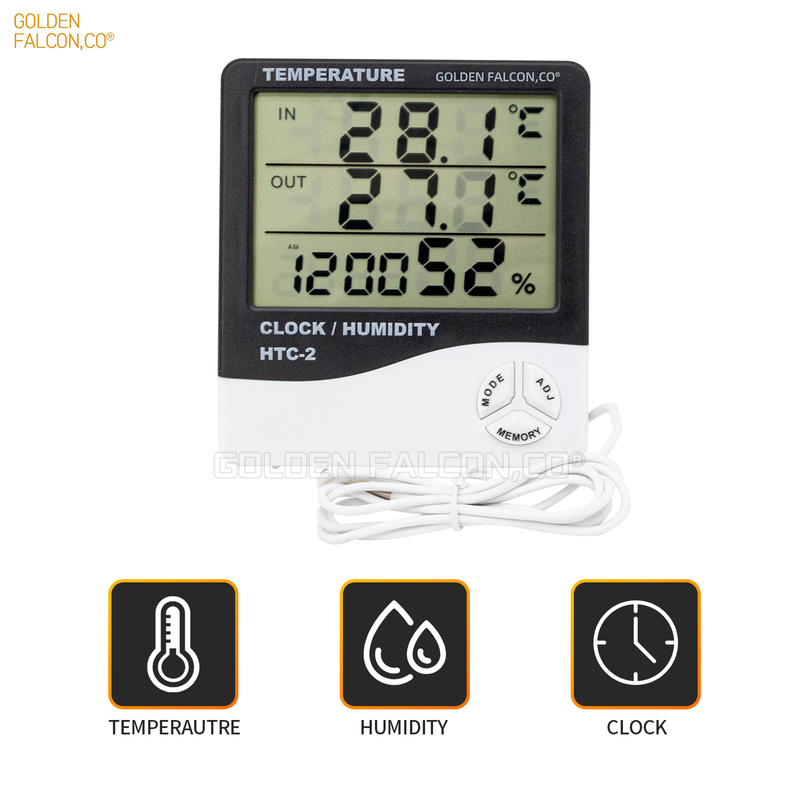

Product Name & ModelNO.: HTC-2

Product Specifications:

Temmperature measurementrange:-10C-+50C(-14%F+122F)

Temmperature measurement accuracy : 土2C(3.6F)

Temperature resolution : 0.1C(01F)

Humidity measuring range: 10%-99% RH

Humidity measuring accuracy: 10% RH

Humidity resolution : 19

Battery: AAA 1.5V 1PCS

Basic functions:

Temperature /Humidity

C/F temperature switch display

The maximum /minimum temperature

and humidity memory function

12/24 hour clock

The whole point time keeping function

Daily alarm

Calendar display

Operation manual:

1 Push down battery cover "OPEN"on meter back side, and install battery.

2 Time setting: In the initial state, press [MODE] till there is a Di sound, and

thenumber of minute start flashing; press (ADJ] to adjust number, press (MODE]

to setminute number: then the number of hour start flashing. Repeat above steps to

sethour number,and enter hour system setting.Press [ADJ] to choose "12/24""

repeatabove steps to set date.

3 Alarm setting: in normal clock mode (the two points between hour and minuteflash),

press [MODE] once, switch the display for alarm clock mode (clock andminutes between

two points in not flashing). Press (ADJJ to switch " ww (alarm)#ALarm#* (hourly alarm)

function;

press [MODE] till there is a Di sound, and thenumber of minute start flashing, you can set

the

alarm time (same steps as timesetting), press (MODE] once to exit alarm time setting,

When alarm, meter sounds forone minute, or press any button to stop alarmm;

When hourly alarmm, meter only sounds“DiDi”.

4. Press (MEMORY] button to display the MAX/MIN/Current temperature/humidity.

5. Memory clear function: in MAX or MIN state, press [MEMORY] for long

timme till aDi sound to clear MAX/MIN data
